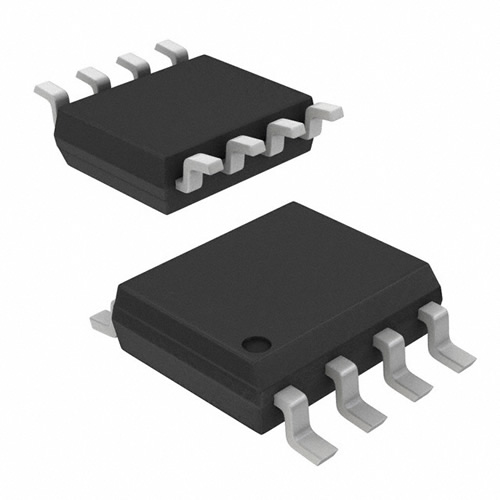

Package / Case

SOIC

Surface Mount

YES

Number of Pins

8

Frequency - Gain Bandwidth Product (GBP)

3MHz

Operating Temperature (Max)

125°C

Operating Temperature (Min)

-40°C

Current - Supply (Nom)

800μA

Number of Elements

1

Packaging

Rail/Tube

JESD-609 Code

e4

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Voltage - Supply

5V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Temperature Grade

AUTOMOTIVE

Power Dissipation

396mW

Current - Output

13mA

Current - Supply

625μA

Slew Rate

2.4 V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio

69 dB

Current - Input Bias

60pA

Output Current per Channel

13mA

Input Offset Voltage (Vos)

5mV

Bandwidth

3MHz

Unity Gain BW-Nom

3000 kHz

Voltage Gain

110dB

Average Bias Current-Max (IIB)

0.00006μA

Power Supply Rejection Ratio (PSRR)

70dB

Low-Offset

NO

Frequency Compensation

YES

Max Dual Supply Voltage

8V

Low-Bias

YES

Micropower

NO

Min Dual Supply Voltage

1.35V

Bias Current-Max (IIB) @25C

0.00006μA

Programmable Power

NO

Dual Supply Voltage

5V

Nominal Gain Bandwidth Product

3MHz

Max I/O Voltage

5mV

Voltage - Supply (Max)

16V

Voltage - Supply (Min)

2.7V

Height

1.58mm

Length

4.9mm

Width

3.91mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
